The cast and steel jack is exactly the same as the all-cast jack except that it has four stamped high-strength steel parts. We stamp and form the parts in-house; that allows us to offer the jack at a lower price, yet we still maintain the rigid quality standards that every Hi-Lift product must meet.
- Made of Cast & Stamped Steel Parts.
- 7000lb (3175.14kg) Tested Capacity.
- Available in 36", 42", 48", & 60" Heights. (91, 107, 122, & 152cm)

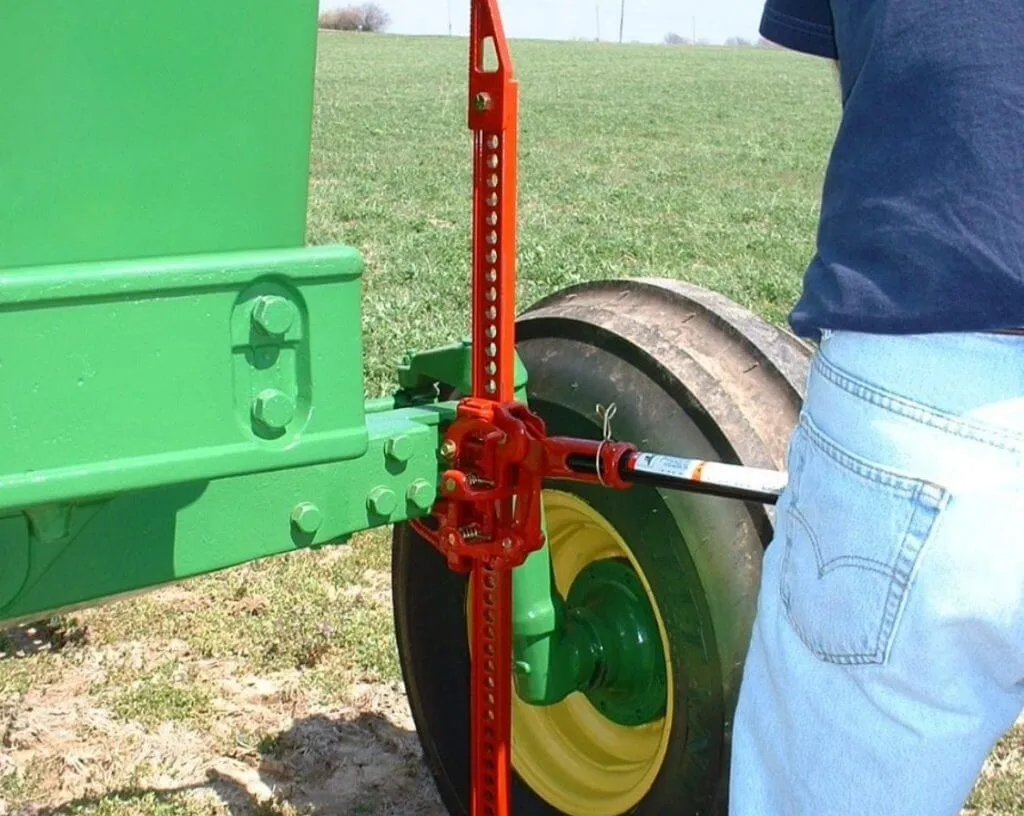

- Lifts, Winches, Clamps, & More.
- Tested and certified to meet applicable requirements of ASME B30.1-2015.
Specifications:
- Size: 36” (91 cm)
- Min. Lift Height: 4.5" (11.43 cm)
- Max. Lift Height: 27" (68.58 cm)
- Overall Height: 41" (104.14 cm)
- Width: 5" (12.7 cm)
- Depth: 9.63" (24.46 cm)
- Rated Load (RL): 4,660 lbs. (2,113 kg)
- RL on upper 12" (30.5cm) - N/A
- Tested Load (TL): 7,000 lbs. (3,175 kg)
- TL on upper 12" (30.5cm) - N/A
- Winching Capacity: 5,000 lbs. (2,268 kg)
- Clamping Capacity: 750 lbs. (340 kg)
- Weight: 25 lbs. (11.35 kg)
