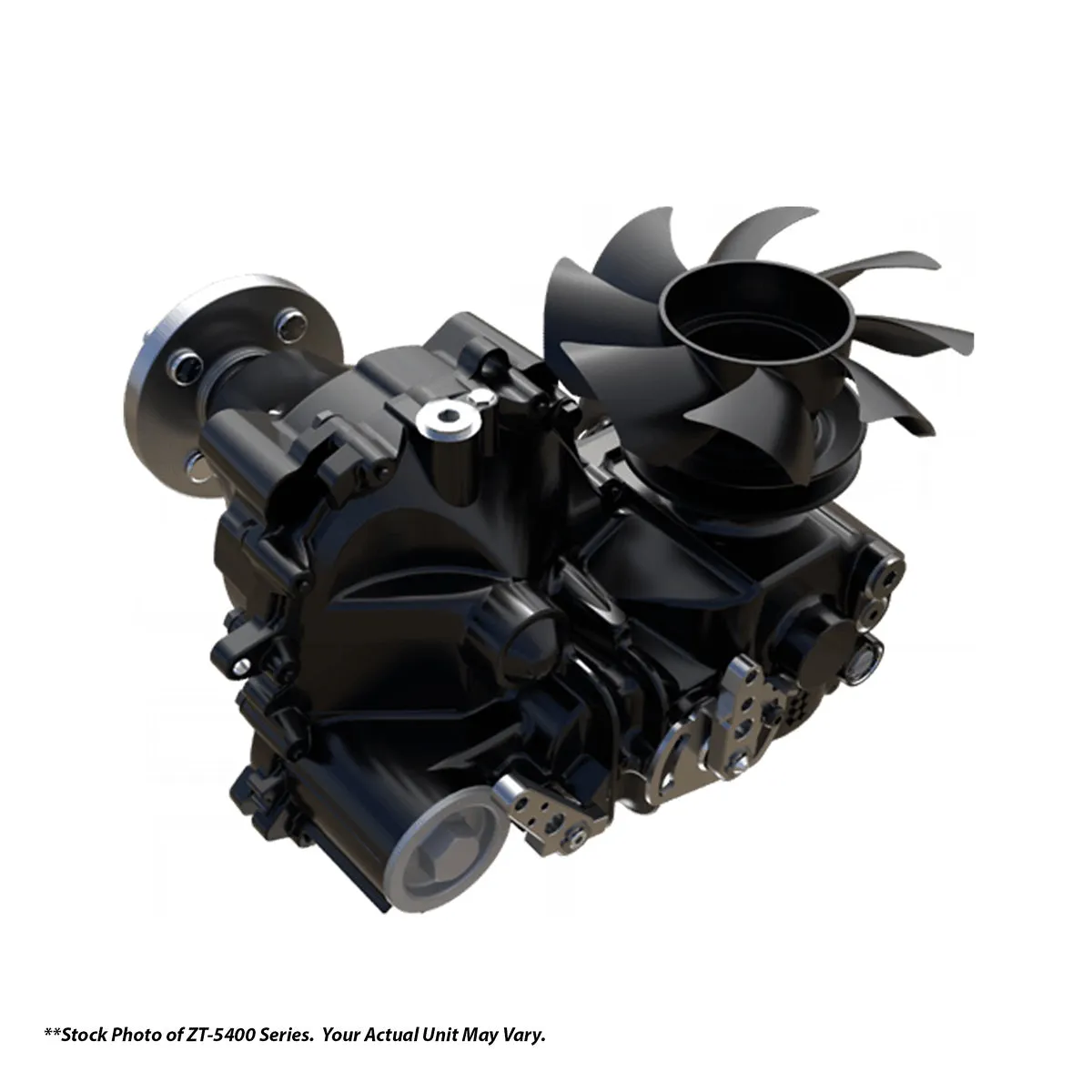

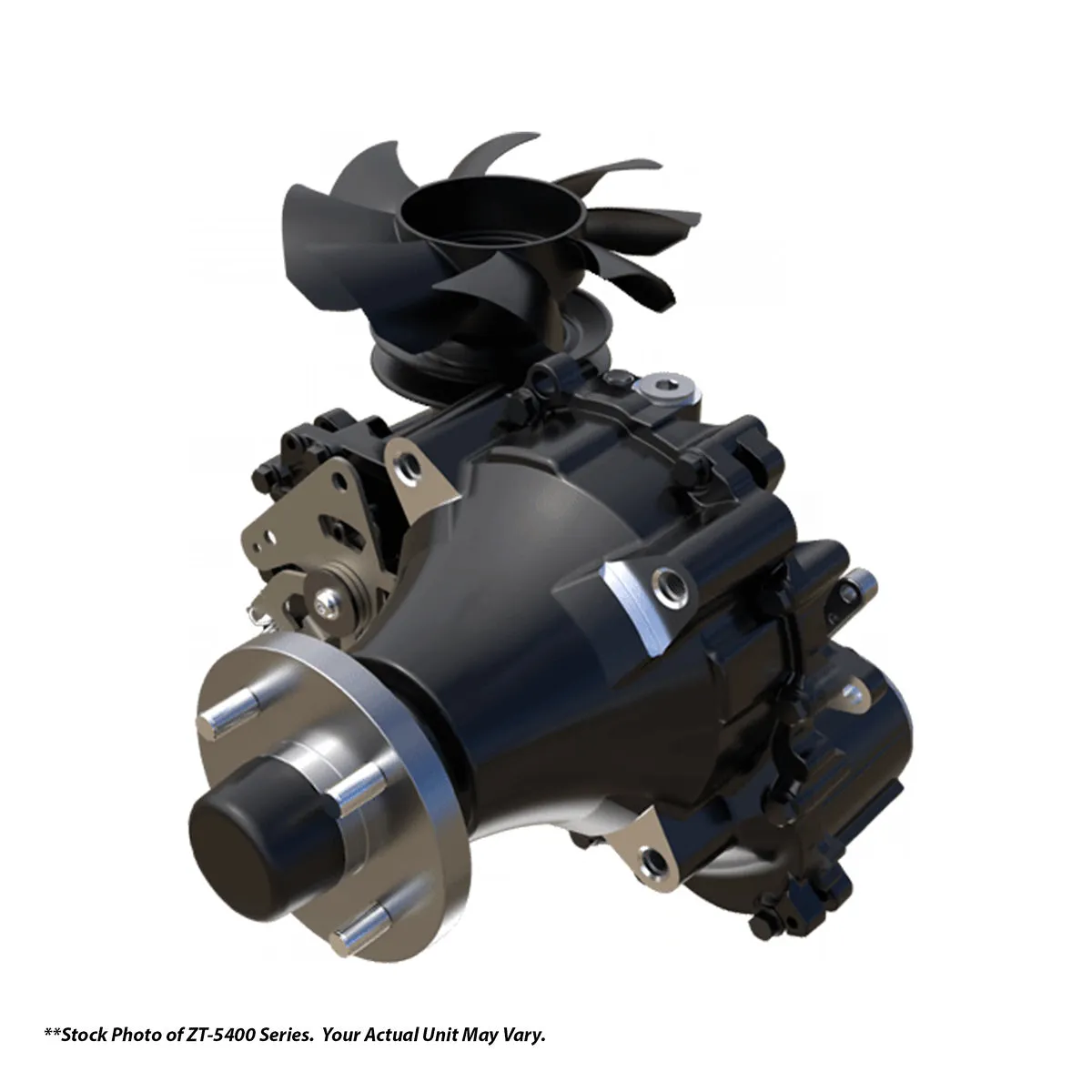

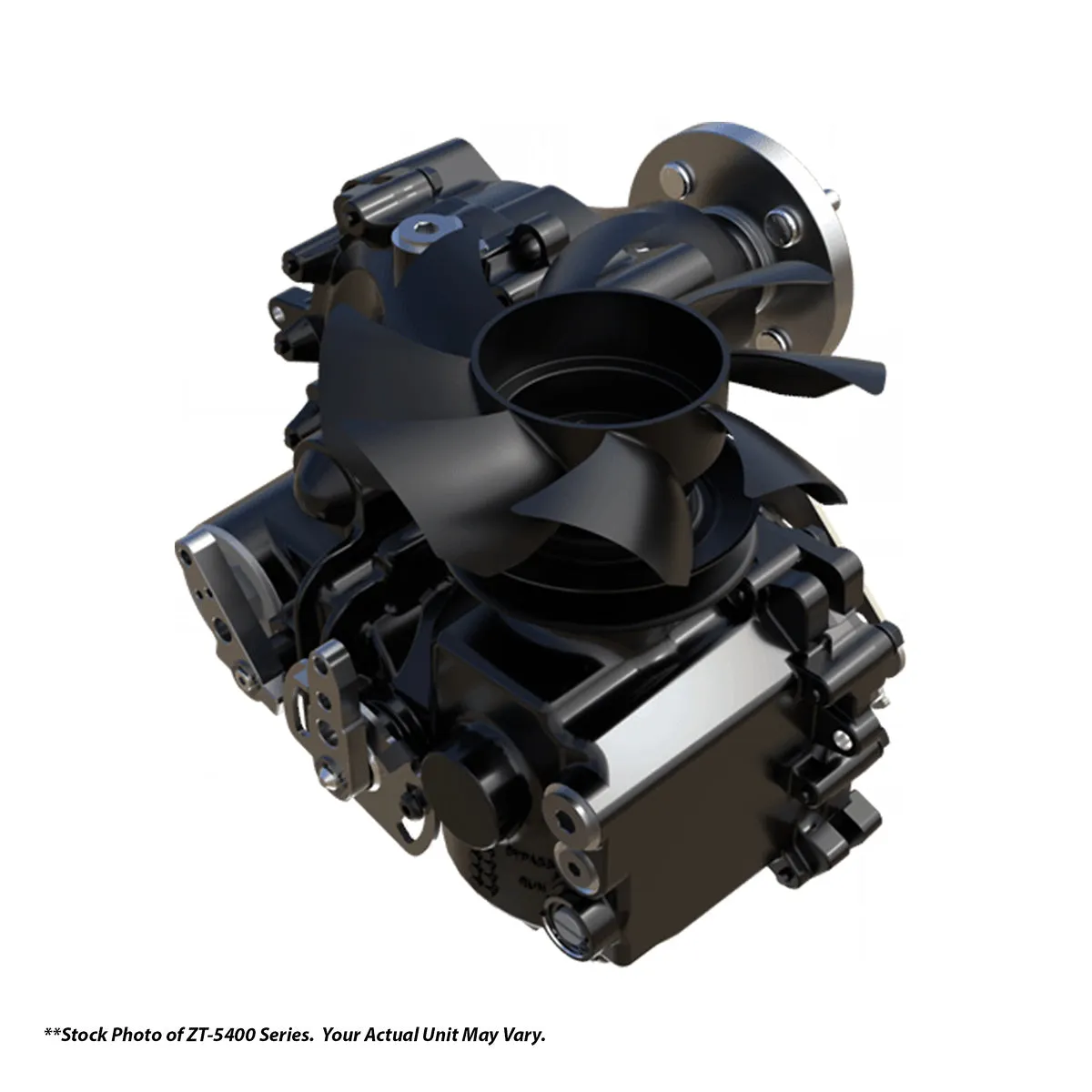

ZT-5400 Powertrain^®

LARGEST TRANSAXLE – HANDLES THE BIGGEST & TOUGHEST JOBS.

For serious jobs, drive it with Hydro-Gear’s largest, fastest, and most powerful unit – the ZT-5400 Powertrain®. This beast features heavy-duty roller bearings, a high-capacity thrust bearing for extended life, a high-efficiency 16cc pump, a 21cc motor, and an industry-leading 1-3/8” axle shaft. Also comes with a standard performance package and optional transport mode for increased speed between jobs.

• Standard performance package
• Reliable and quiet performance each and every time
• Heavy-duty 1-3/8″ axle for machines weighing up to 2200 lbs
• Optional transport mode for increased speed
• Our largest and most durable integrated unit with a high efficiency 16cc pump & 21cc motor

SPECIFICATIONS

LOW SPEED OVERALL REDUCTION - 18.6:1

HIGH SPEED OVERALL REDUCTION - 12.9:1

PUMP DISPLACEMENT - 0.97 in3 /rev [16 cc/rev]

MOTOR DISPLACEMENT - 1.33 in3 /rev [21.8 cc/rev]

INPUT SPEEDS

• MAX HI-IDLE (NO LOAD) - 3600 rpm
• MIN (LOADED) - 1800 rpm

OUTPUT TORQUE - up to 700 lb-ft [up to 949 Nm]

SPEED - up to 18 mph [up to 29 kph]

GROSS VEHICLE WEIGHT - up to 2200 lbs [997 kg]

AXLE SHAFT DIAMETER - 1.375 in [34.925 mm]

AXLE SHAFT END OPTIONS

• Tapered
• 4-bolt Flange
• 5-bolt Flange

WEIGHT OF UNIT - 57 lbs [25.85 kg]
