Description

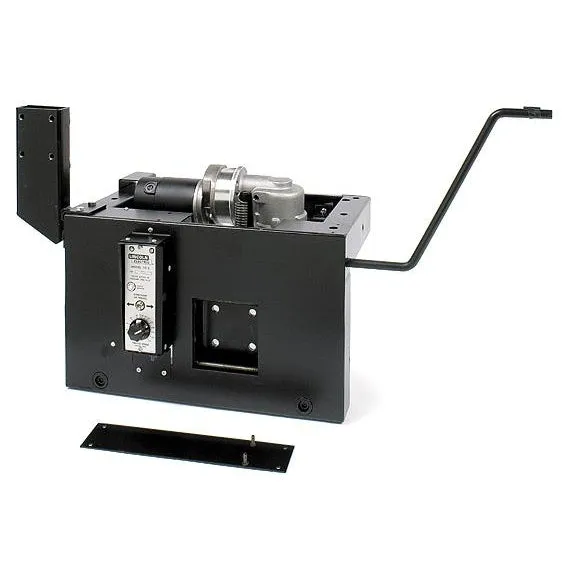

• Carries head and controls in either direction on a beam of suitable length.

• It operates either automatically with the weld controls or manually.

• The speed range, set with a continuous speed control without gear changes, is 5-75 ipm (.1-1.9 m/min).

• Requires 115V AC, 60 or 50 hertz power available from Lincoln power sources.

• For tandem arc (2 or 3 heads) and Twinarc-tandem arc (up to 4 wires) installations.
