| Product Attribute | Attribute Value |
|---|---|
| Adapter Type | In-Series |
| Angle | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Housing Finish | Nickel |
| Housing Material | Brass |
| Impedance | 50 Ohms |
| Length | 1.32" (33.6mm) (Max.) |
| Material, Dielectric | PTFE (Polytetrafluoroethylene) [Teflon] |
| Mating Type | Bayonet |
| Maximum Operating Temperature | 165 °C |
| Primary Type | In Series Adapter |
| Series | |
| Type | Jack - Jack |
| UPC Code | 095969182225 |
| Voltage Rating | 500 V |
Overview

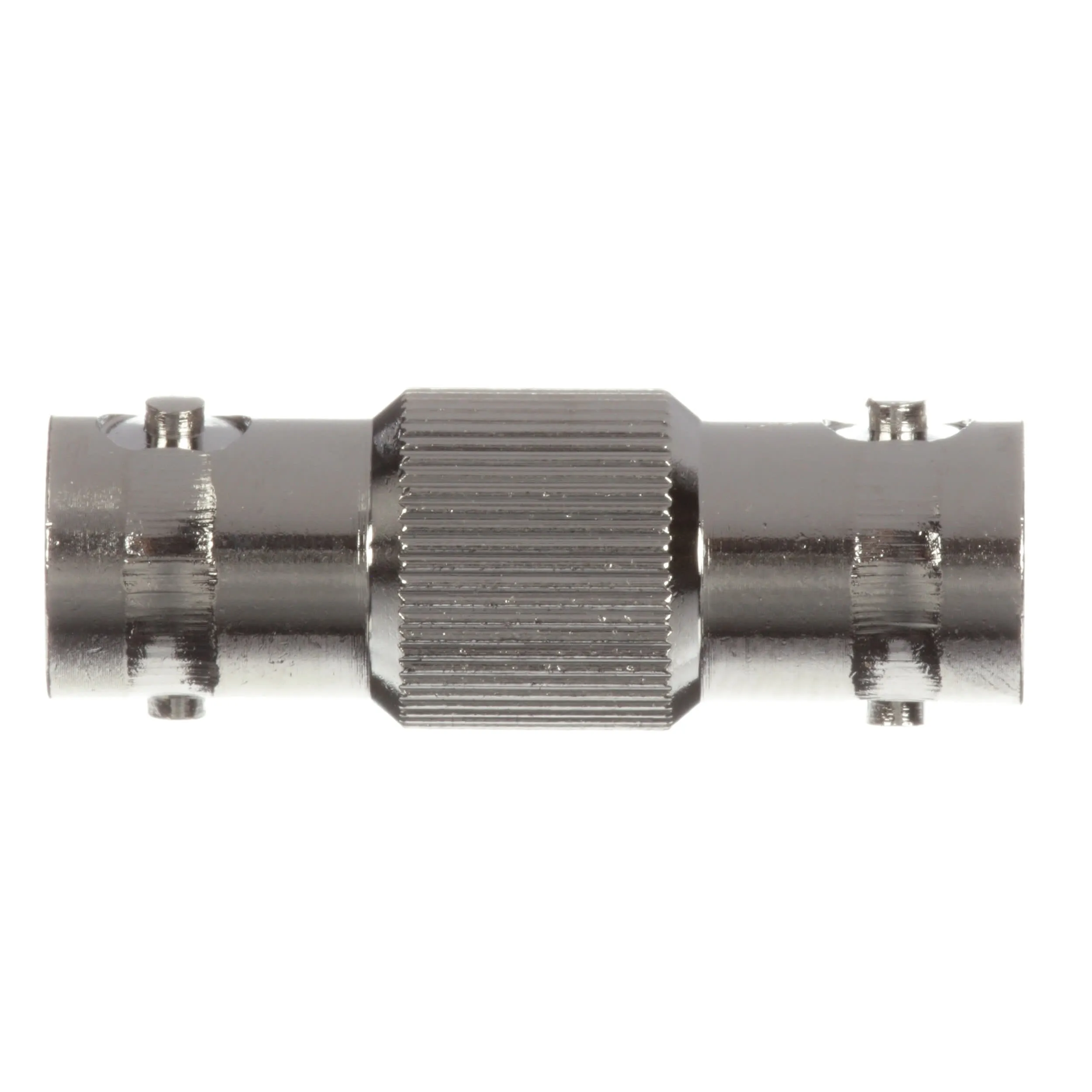

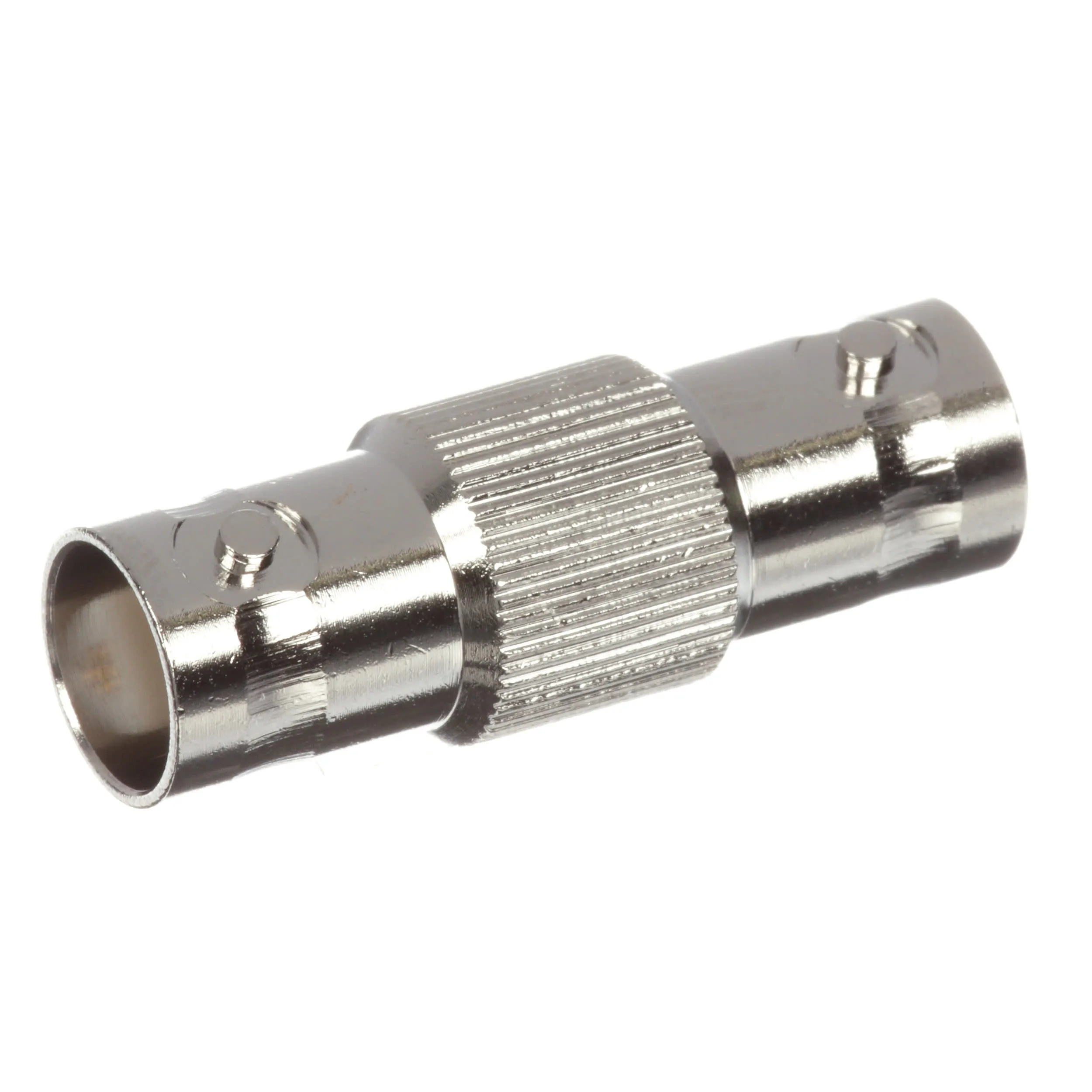

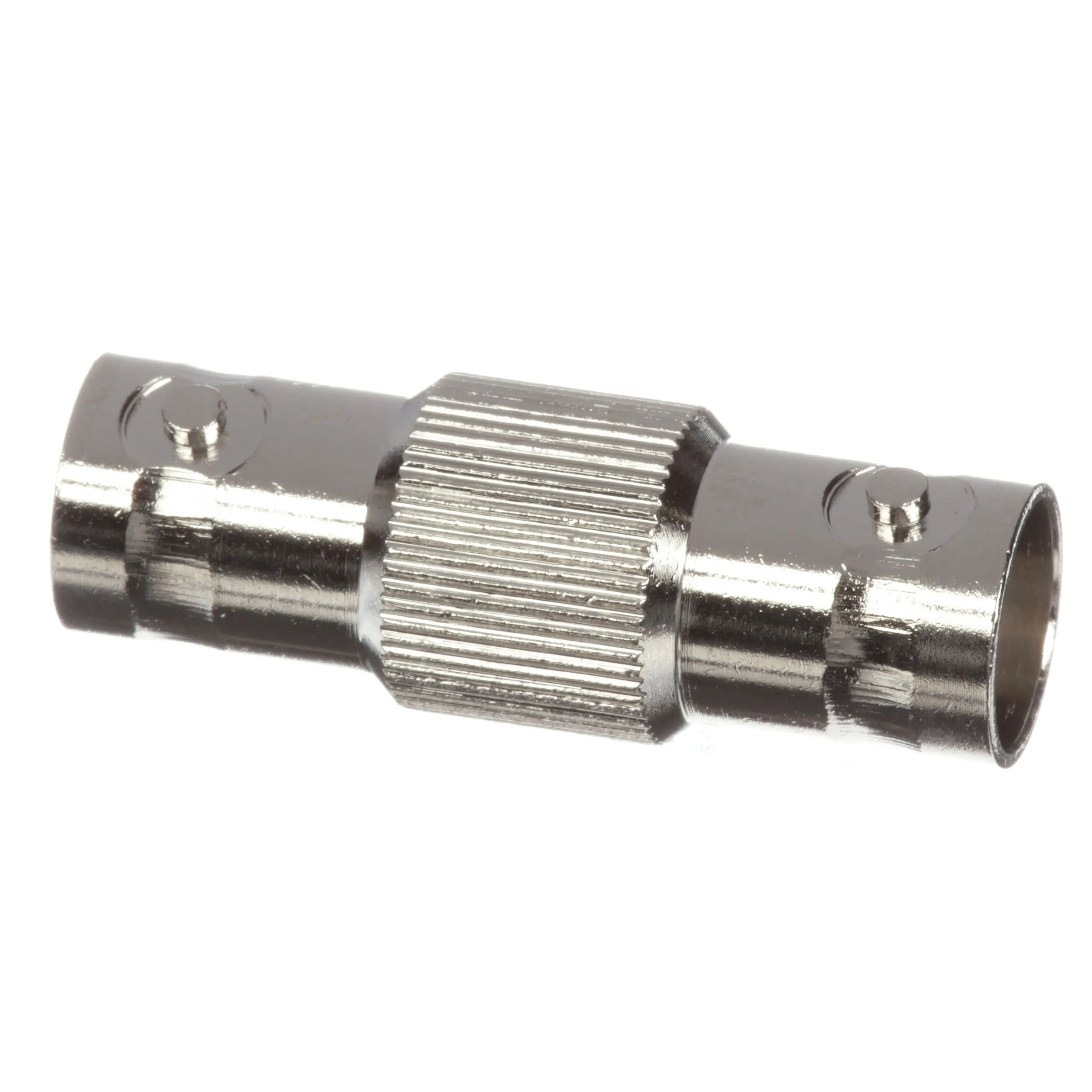

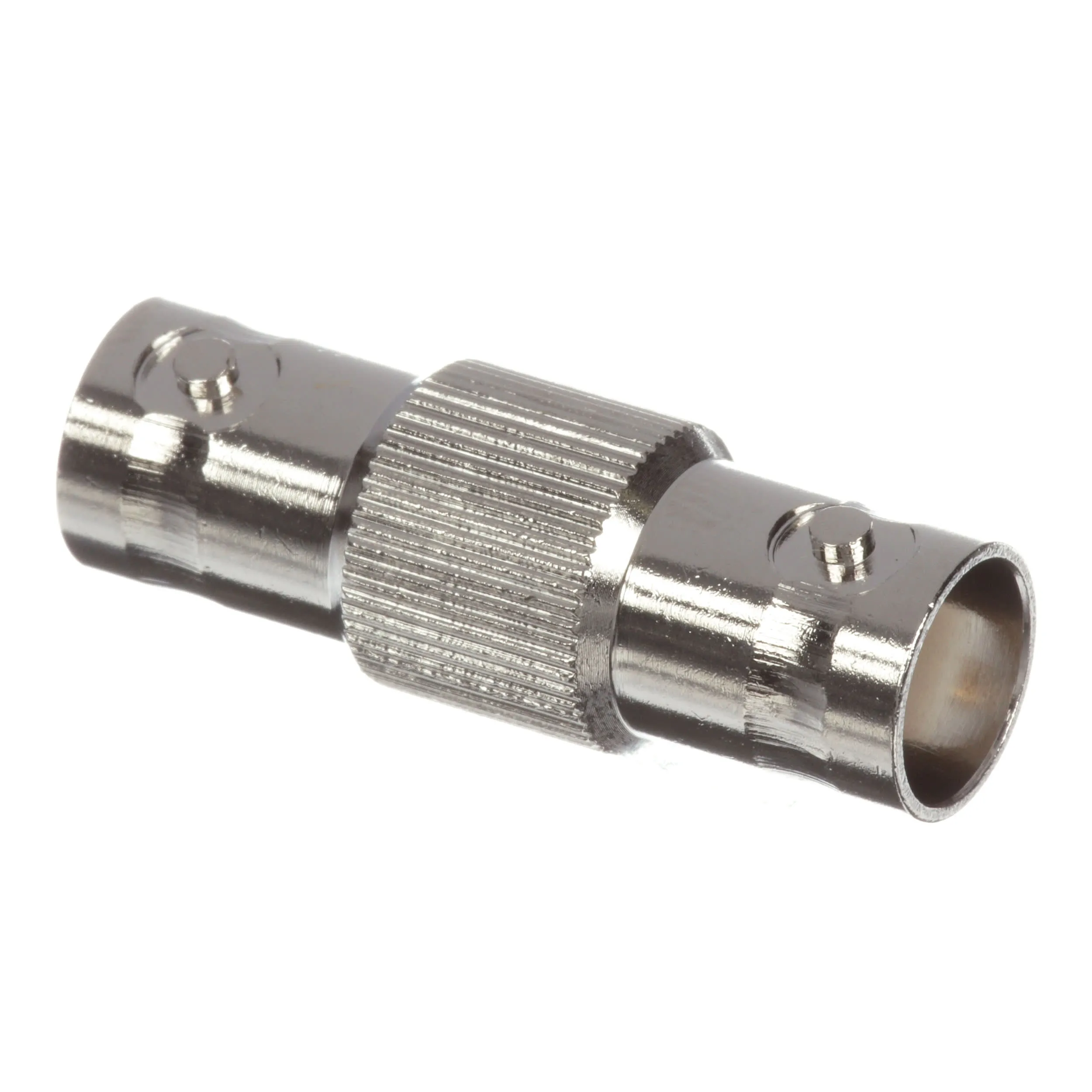

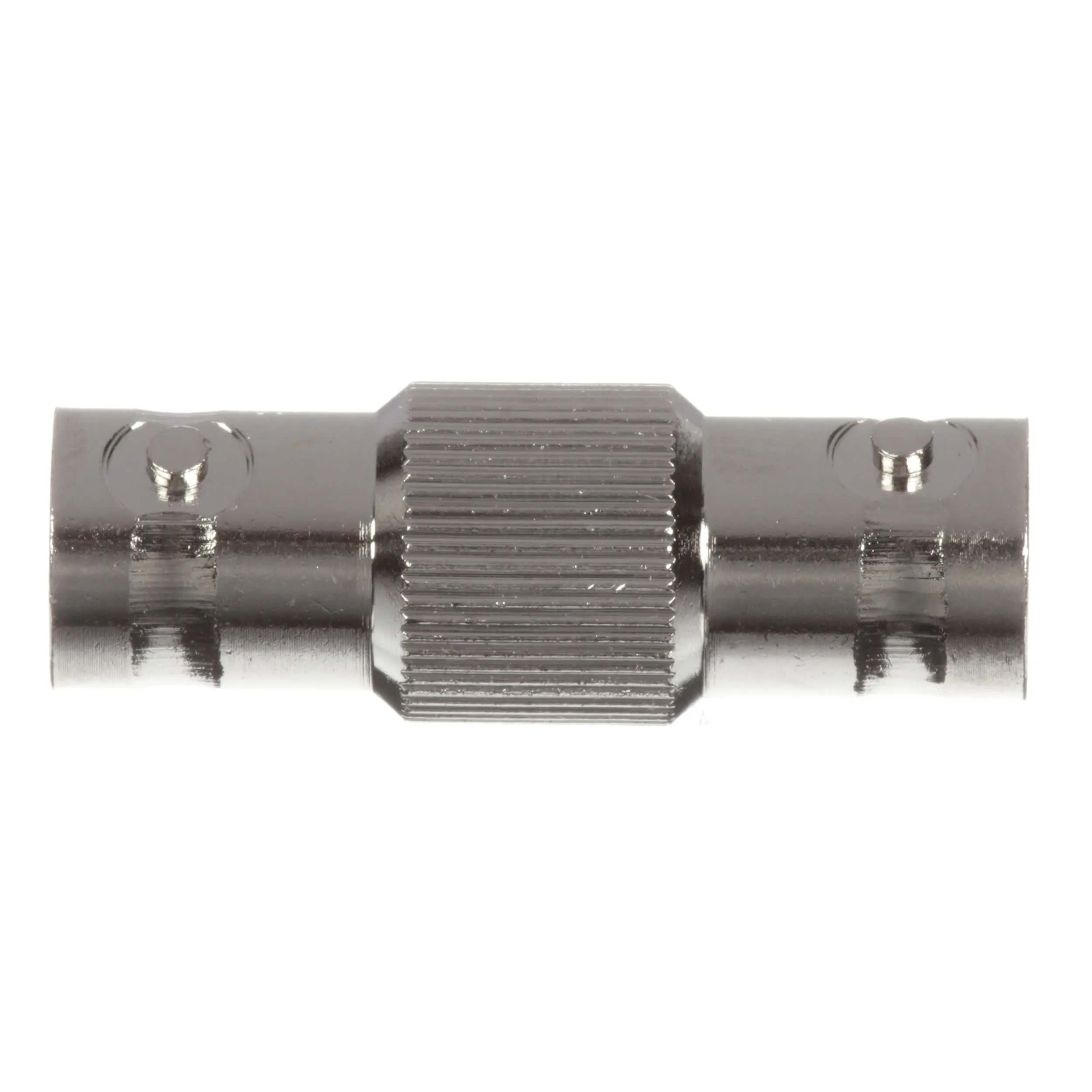

BNC Female to Female Adapter, 50 Ohms Nominal Impedance
The adapter have center contact of gold plated beryllium copper.
